Deionized Water For Electrical Discharge Machining
Quick Read
Besco Commercial Water Treatment can install a system to deliver deionized water for electrical discharge machines. This water is also known as EDM deionized water. We are:
- WQA certified
- Able to serve businesses in the Midwest and Eastern United States
- One of the largest DI water providers in the country
- Available 24/7 for emergencies and service
When looking for a company that can serve your water treatment needs, look for a provider that can:
- Deliver bulk DI water
- Deliver DI regeneration tanks for your needs
Call Besco Commercial Water Treatment at (800) 964-0257 or fill out this form to receive a free online quote.
If you run an Electrical Discharge Machining (EDM) wire-cutting facility, you must use the correct dielectric fluid recommended by the manufacturer. Many manufacturers require ultrapure water for creating these 3-D parts, which are cut under water with high precision.
Besco Commercial Water Treatment can help your facility design a deionized water supply line for your EDM machine.
What is EDM (Electrical Discharge Machining)?

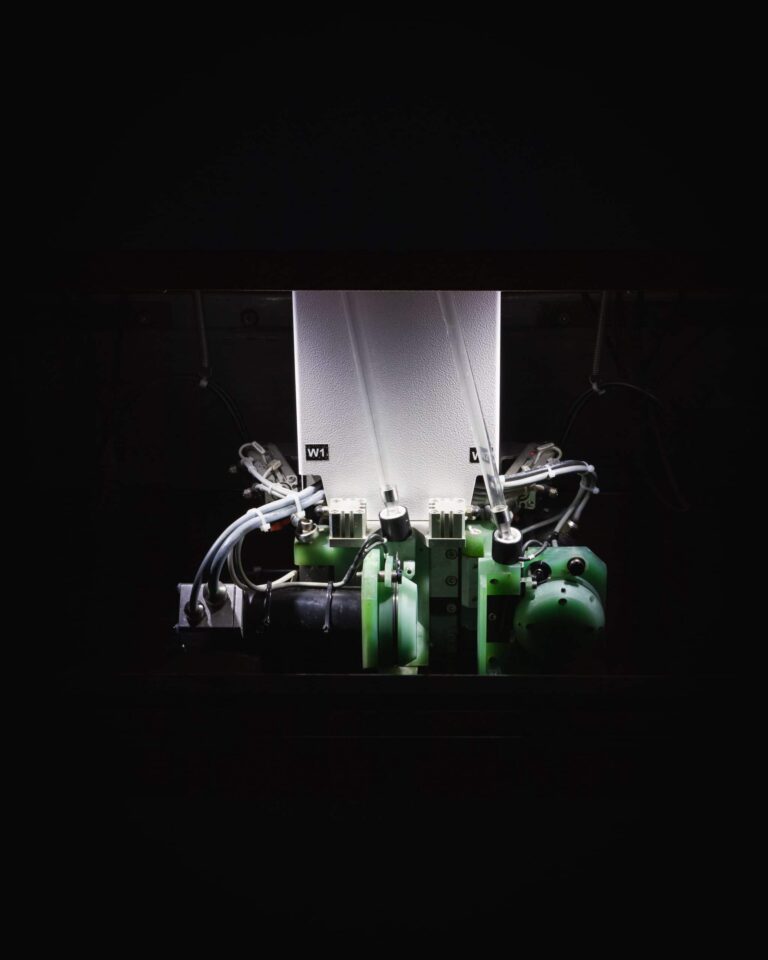

Electrical Discharge Machining (EDM) wire cutting uses controlled electrical sparks to cut through hardened metals such as steel, titanium, and other conductive materials. The workpiece is shaped using a thin metal wire, usually made of brass, that never physically touches the surface it cuts.
Instead, the process takes place under a bath of deionized (DI) water, which serves several critical functions. The DI water acts as a dielectric fluid, insulating the wire and workpiece until a spark is precisely discharged. Each spark melts a microscopic portion of metal, and the DI water immediately cools the cutting area and flushes away debris.
EDM wire cutting allows for intricate patterns, extremely tight tolerances, and clean edges that would be difficult or impossible to achieve with conventional machining methods.
Why Is DI Water Necessary?
Any impurities in the dielectric fluid can affect the accuracy of the finished part, damage the wire, or shorten the life of your EDM machine. That’s why deionized water is the preferred dielectric fluid for wire EDM. It provides the right balance of electrical resistivity and purity to control the spark gap and flush away debris efficiently.
Here’s why maintaining proper water quality is critical:
- Resistivity control: For wire EDM, the water must maintain a specific resistivity (usually between 1 and 20 megohm-cm). If it’s too conductive, sparks can arc uncontrollably; if it’s too resistive, the machine may not spark at all.
- Prevention of short circuits: Tap water or unfiltered water contains dissolved ions that make it overly conductive, which can cause unwanted short circuits or unstable discharges.
- Surface protection: Impure water promotes oxidation and corrosion on both the wire and the workpiece.
- Cut quality: Stable DI water resistivity ensures smooth, accurate cuts and consistent surface finishes.
Maintaining this precise water chemistry is essential to the EDM process. The purity of your deionized water for wire EDM doesn’t just affect machine performance. It also determines how cleanly, accurately, and efficiently every cut is made. This is where the deionizing resin system plays a vital role in keeping your water at the proper quality level.
How Deionizing Resin Works in EDM Systems
In wire EDM systems, the purity of your dielectric water is maintained by deionizing resin, also known as DI resin or DI media. This wire EDM deionizing resin is made of ion-exchange beads that remove minerals and contaminants from the water as it circulates through the EDM machine.
Over time, the resin becomes saturated and needs to be replaced or regenerated to keep resistivity levels within the proper range. Besco Commercial Water Treatment provides mixed-bed deionizing resin tanks and resin exchange services that ensure your water remains consistently ultrapure. Our team can design a complete DI loop system and schedule timely resin exchanges to keep your EDM process efficient and precise.
Get DI Water For Your EDM Wire Cutting Facility
Besco Commercial Water Treatment is a DI water provider for manufacturers throughout the United States. We work with clients in machine shops, aerospace, and metal plating.
With more than 50 years in business and more than 200 years of cumulative experience among our highly trained staff, Besco Commercial is the trusted water solutions provider you can count on to design and install a DI system specifically for your needs.
Our available DI systems include mixed-bed deionizers, DI tank exchange systems, and bulk DI water delivery.
We service the systems we sell, and our expert, WQA-certified staff is available to answer any questions you may have. If you need EDM water treatment for your wire-cutting facility, call General Manager Ken Morgan or Commercial Operations Manager Brian Noble at (800) 264-0257 or fill out this form for a free online quote.
